Homestead — The Artifacts

One product, two design languages — and the five outputs that prove the split was the right call.

Personal renovation suite · 1962 CMU ranch, Phoenix AZ · captured 25–26 July 2026

The decision every artifact below is testing Dark tool = where it's designed. White print = what gets delivered. The working UI is a focused dark interface around a light drawing surface — a plan reads like paper even inside the tool. Anything a contractor or a permit office receives is a separate, print-quality render — never a screenshot of the tool. Two contexts, designed deliberately, rather than one stretched compromise. This page is itself an instance of the rule.

01 The deliverable

Decision What leaves the tool is authored, not exported. Editorial typography, a real accent system, callouts that carry the argument — a document that reads as considered rather than emitted.

A print-formatted Property Briefing: serif headline over a terracotta rule, an executive summary, a neighborhood outlook section with market figures, and a highlighted net-read callout. — **Property Briefing — the print deliverable.** Serif headlines, a terracotta accent system, cream and slate neutrals, and a recommendation carried in a callout rather than buried in a paragraph. It is driven by the same project data as the design tool that follows — and is a completely different object. *Leading with it on purpose:* it is the strongest evidence in the set that the output was designed, not generated.

02 The design canvas

Decision Give the person exploring a quiet, high-contrast workspace — dimension strings, wall assemblies and door swings, and nothing competing for attention.

2D floor plan of a 1962 ranch house drawn on a white surface inside the dark tool interface, showing dimension strings, wall layers, door swings and window symbols, with a room schedule panel on the right. — **2D floor planner — the renovation target layout.** Walls render as real assemblies (CMU, 2×4 frame, drywall), not single lines; openings cut the wall they sit in; dimensions are measured to the outer face. The plan models a real house to a verified tape measurement.

03 Reno mode — design tied to cost

Decision The value isn't drawing. It's the connection — move a wall and watch the money move with it. So the original layout stays on screen as a ghost, and the delta is priced live.

The same floor plan in renovation mode: two rooms highlighted with dashed orange outlines against their original positions, annotated 'was Bedroom 3' and 'was Living Room', with square-footage deltas and a live cost estimate panel on the right. — **The as-built plan with a renovation overlay.** Ghost outlines mark where walls used to be, *“(was Bedroom 3)”* labels survive the rename, and the ± square-footage badges and cost panel update as the wall is dragged. This is the screen that answers the question the other tools can't: *what does this change cost me?*

04 The same change, as a document

Decision The tool's answer and the document's answer are the same numbers in two contexts — one for thinking, one for handing to somebody.

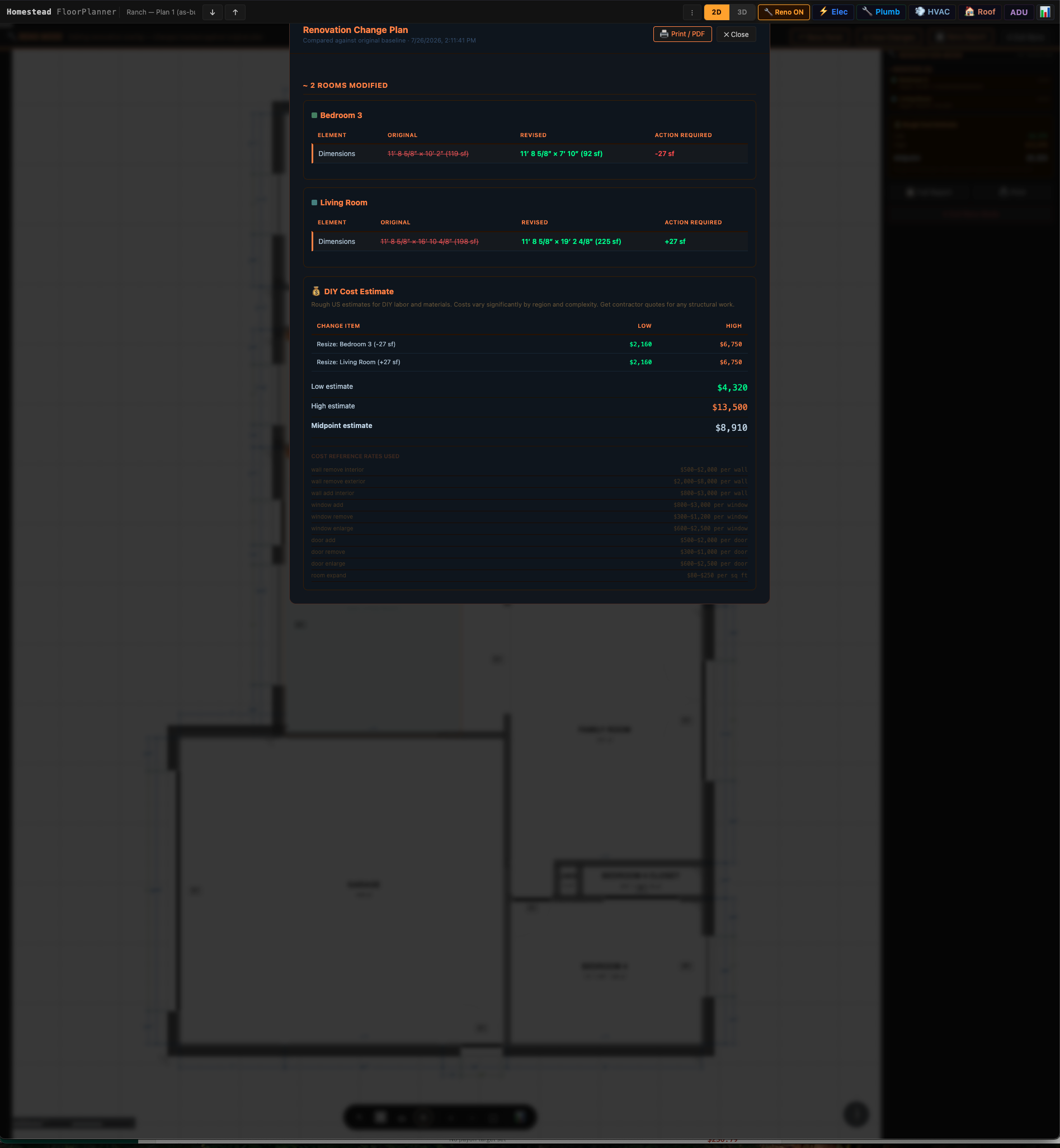

A generated Renovation Change Plan panel listing each modified room with its original dimensions struck through, the revised dimensions, the square-footage change, and an itemised cost estimate with the underlying rate table. — **Generated Renovation Change Plan.** Originals struck through, revised values beside them, the area change, and an itemised estimate with the rate table it was derived from — so the number can be argued with rather than trusted blindly.

05 Domain depth, made concrete

Decision A permit document has to be right in the terms it uses itself. That means the tool has to know that a garage is not conditioned space — and has to be honest about what it can't verify.

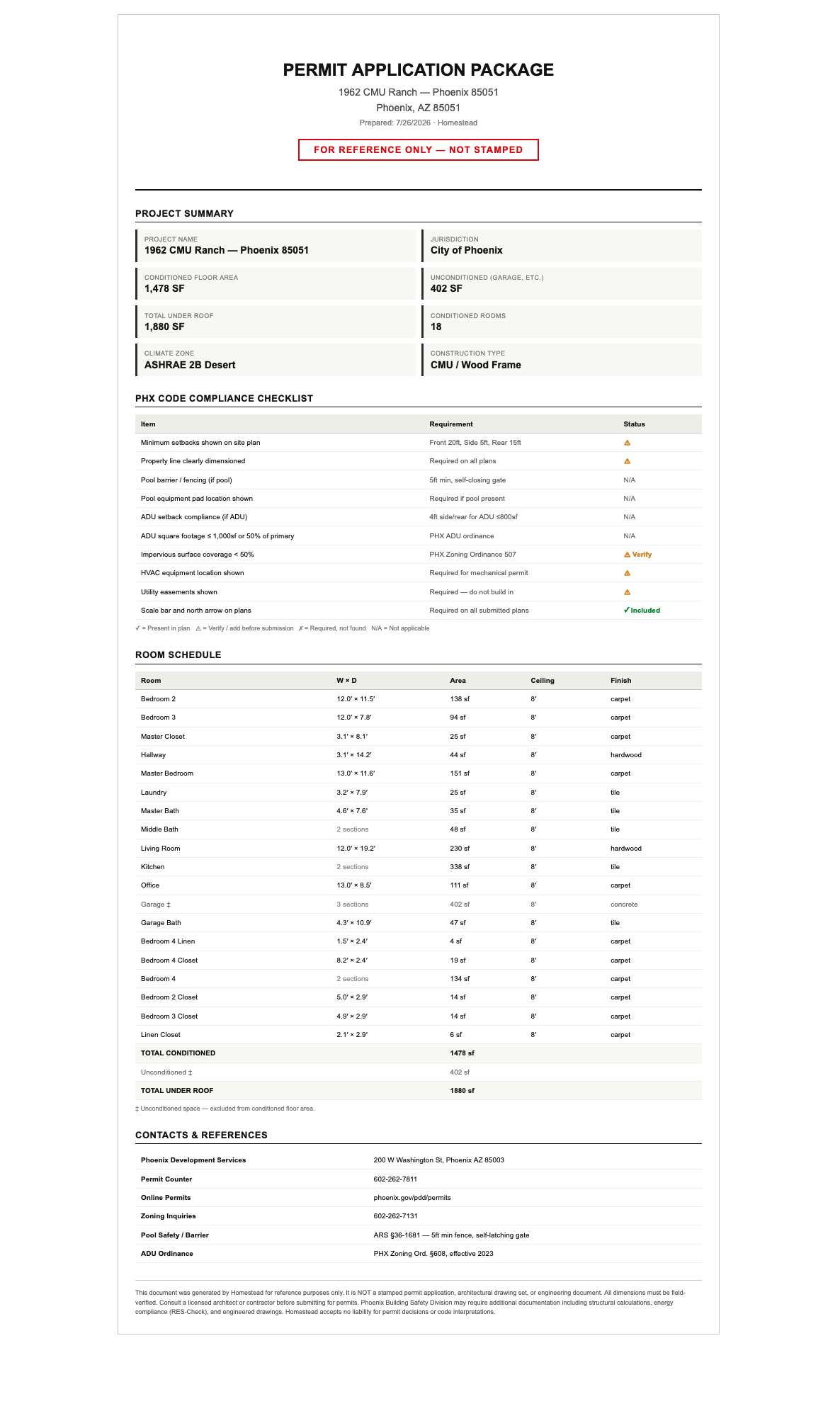

A white, print-formatted Permit Application Package: project summary with conditioned floor area, unconditioned area and total under roof; a Phoenix code compliance checklist; a grouped room schedule with subtotals; and jurisdiction contacts. — **Auto-filled Phoenix permit package.** Conditioned area is reported separately from unconditioned — the garage is excluded, marked, and subtotalled rather than quietly inflating the headline number. The compliance checklist shows mostly *“verify”* because no site plan is loaded; a checklist that passed everything on missing data would be the actual lie.

06 The two contexts, side by side

The headline One product. Two design languages. The single image that makes the argument without a caption.

The tool — dark UI, light canvas

The design tool — dark chrome around a light drawing surface — shown at small scale beside the printed deliverable for contrast.

The deliverable — white print

The white editorial Property Briefing, shown at small scale beside the design tool for contrast.

Same data, two audiences. The left is built for the person deciding; the right for the person receiving. Neither is a compromise toward the other — and neither is a screenshot of the other.

07 What assembling this evidence found

Shooting these captures was not a photo session — it was a review pass. Driving the product for an outside audience surfaced defects that normal use never had, because normal use never checked the numbers against the source data.

Defects found

during capture, 26 Jul

Fixed same day

each with a logged cause

Largest error

402 SF

garage billed as living space

Reshoots

to get one page right

What was wrong	How it surfaced	Why it mattered
Garage counted as conditioned floor area	Read the generated summary and disagreed with it — the number didn't match the house	A 402 SF overstatement on a document headed “permit,” wrong in the terms it used itself
Room schedule listed modeling rectangles, not rooms	Audited the capture before it went in the pack	Kitchen appeared twice; the permit summary counted 21 conditioned rooms in an 18-room house
Two cost estimators disagreed by 2×	A delegated read of the cost path, commissioned to size a different fix	A tool whose pitch is design-tied-to-cost showed two prices for one change
Settings silently reverted on reload	A placeholder name reached a portfolio capture	State that only lived in memory — no error, no warning, just quietly wrong output

Why this section is in a portfolio Every one of these was found by a person looking at output and refusing to accept it — not by a test. The tooling verified the code did what it said; it could not know that “conditioned” excludes a garage. Knowing which answer is wrong when nothing has failed is the judgment the job is for.

08 Reading the numbers honestly

Four things a careful reader would catch, stated here rather than left to be discovered:

In the images	Status
The cost panels show a single wall move billed twice	Captured before the fix; corrected the same day. The captures were kept as shot rather than re-staged after the fact.
The canvas ROOMS panel lists 24 rectangles	Kitchen, Middle Bath and Bedroom 4 each appear twice; Garage three times. Fixed in the deliverable, not yet in the tool. The model stores rectangles; a schedule lists rooms, and an L-shaped space is several rectangles. §05 groups them by name and excludes the garage: 19 rows, 18 conditioned rooms, with the areas unchanged — grouping must not move the arithmetic. The three counts on this page are the same house counted three ways: 24 rectangles on the canvas, minus the three unconditioned garage rects gives the 21 §07 reports, and collapsing the three duplicated names gives 18. Caught on the document before it shipped, outstanding on the canvas behind it. Shown rather than re-staged.
Conditioned area reads 1,478 SF against a measured 1,530	Open. The schedule sums labeled rooms, not the building envelope, so circulation and wall footprints go unassigned. Scoped, not yet built.
The compliance checklist is mostly warnings	Working as intended — no site plan is loaded, and the tool says so instead of passing.
